Single Side Laser People Counters

Single Side Laser People Counter
Brochures - People Counters
Video Demonstration
Contact for information

Single Side Laser People Counters enable you to count pedestrians and other moving objects passing through a detection area up to 8 metres without requiring a reflector or transmitter on the opposite side. This makes it ideal for use in a wide range of applications including measuring pedestrian traffic on outdoor footpaths, passing foot traffic for shopping centre kiosks, objects on a production line and more.

The count data is transmitted every minute to our SNG Hub (Ethernet or 3G) unit that can be located anywhere within a 20 metre range (Repeater available to extend the range by another 20 metres). The SNG Hub unit stores the count data and forwards it as data packets at regular intervals to the 'IMMOTION™' reporting application hosted on-site or in the cloud.

Our 'IMMOTION™' software allows users to analyze the data by hour, day, week, month, and year in table or graph form.  This valuable information reveals peak traffic periods to determine optimal operating hours, staffing requirements, calculate customer/sales conversion ratios and analyse production targets.

The 'IMMOTION™' software/database is optimized to handle multiple locations and/or people counters for easy viewing and overall analysis. The 'IMMOTION™' software/database is scalable so that additional SNG Hub's and/or door counters can be added at any time.

General Features

  • Easy installation
  • Unidirectional
  • Single Side Laser
  • Configurable distance setting
  • European designed and built
  • Exceptional after sales support
  • 1 Year Warranty
  • No ongoing costs

Availability

Only limited stock of this model is available for existing customers. For new customers this model has been replaced with the Overhead 3D People Counter which provides improved features and functionality.

Package Features

Single Side Laser Sensors

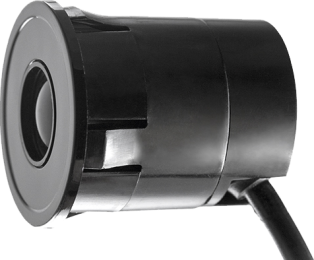

Single Side Laser People Counter - Mini Edition

Single Side Laser - Mini EditionThe Mini Edition features a compact size for easy installation, utilising ToF laser technology to configure counting distances of up to 6 metres. It can be installed in horizontal positions for footfall traffic as well as overhead positions for narrow traffic counting. It is available with a range of mounting / housing options including bracket ball, square housing and outdoor housing.

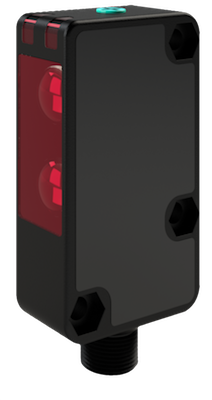

Single Side Laser - Full Size EditionSingle Side Laser People Counter - Full Size Edition

The Full Size Edition can be configured for counting distances of up to 8 metres and features IP65 weatherproof casing.

Make Inquiry

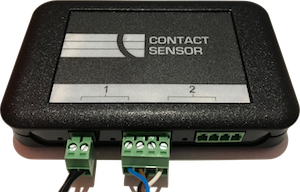

Contact Sensor

Contact Sensor

The supplied Contact Sensor powers the Single Side Laser Sensor via a 2 metre cable, receives the count data from the Single Side Laser Sensor and wirelessly forwards the data to the SNG Hub.

The Contact Sensor can power and connect to two separate Single Side Laser Sensors via separate cables.

SNG Hub (Sensor Network Gateway)

SNG Hub (Sensor Network Gateway)

The SNG Hub (SNG) wirelessly communicates with the people counting sensors to receive the latest, up to date, count data from one or more sensors within a 30 metre radius. Once received, the count data is automatically sent at regular intervals to the IMMOTION™ software where the count data can be viewed/exported by hour/day/week/month year totals. Each SNG Hub has the ability to collect the counting data from up to 10 counters.

The SNG Hub is available in two editions:

Ethernet (SNG10E) Edition

SNG10EThe Ethernet edition (SNG10E) is designed to connect directly into your local network via an Ethernet LAN port or can be connected to your buildings Wi-Fi via an optional Wi-Fi Access Point/Bridge. The SNG10E is ideal for situations where there are Ethernet ports available within a 20 metre range of the people counting sensors. The hub is able to collect count data from up to 10 sensor devices within a 20 metre radius.

3G (SNG3G) Edition

SNG3GThe 3G Edition (SNG3G) utilises a cellular 3G connection to communicate to the IMMOTION software. The SNG3G is ideal for situations where there are no Ethernet ports available near the sensors. The hub is able to collect count data from up to 10 sensors within a 20 metre radius. The SNG3G requires a full size SIM (not included) and is compatible with all the mobile data providers in Australia and New Zealand.

To use the SNG3G you will also need to be ensure that the server you install IMMOTION™ software onto is externally accessible over the internet.

IMMOTION™ Software

IMMOTION™ Software

Our IMMOTION™ software allows users to analyse count data by hour, day, week, month, and year in table or graph form. This valuable information reveals peak traffic periods to determine optimal operating hours, staffing requirements, calculate customer/sales conversion ratios and analyse production targets.

The IMMOTION™ software/database is optimised to handle multiple locations and/or people counters for easy viewing and overall analysis. The IMMOTION™ software/database is scalable so that additional SNG Hub's and/or door counters can be added at any time.

IMMOTION™ Video Overview

Optional Extras:

Wireless Range Extender

Range Extender for Single Side Laser/Contact Sensor

wireless range extender

The Range Extender increases the Wireless Range between the Single Side Laser/Contact Sensor and the SNG Hub.

With the Single Side Laser People Counter solution the SNG Hub device captures the counting data from one or multiple counters and uploads it to a local or remote server every minute. This requires the SNG Hub to be located anywhere within a range of up to 30 metres (unobstructed) from the  Single Side Laser/Contact Sensor. Implementing the Range Extender effectively increases the range between the SNG Hub and a  Single Side Laser/Contact Sensor by up to a further 30 metre range.

The Range Extender has been designed for ease of installation: when a SNG Hub is found the LEDs display the signal strength of the detected device. We recommend the Range Extender is installed in a high position to improve the wireless signal via line of sight.

Make Inquiry

IMMOTION™ Cloud Hosting

EvolvePlus provides IMMOTION™ on a hosted turnkey cloud solution, leaving you free to focus on what you do best without the burden of ensuring the IMMOTION™ application is stable, maintained, and secure.

Our cloud solution is run on Amazon's secure and scalable AWS platform based out of Sydney Australia for optimal speed and performance.
