Overhead ToF People Counters

Overhead ToF People Counter
Brochures - People Counters
Video Demonstration
Contact for pricing

The EvolvePlus Overhead ToF People Counter solution leverages cutting-edge Time-of-Flight technology to deliver precise people counting for a wide range of environments, including retail stores, shopping centres, libraries, galleries, museums, offices and commercial buildings. With the Overhead ToF People Counter, you can easily track and analyse foot traffic in your facility, allowing you to make informed decisions about staffing, marketing, and operations. The counter is easy to install and use, and the user-friendly Cloud Dashboard allows you to view real-time data and generate reports.

The Overhead ToF People Counter is equipped with advanced sensors that use near-infrared light reflection and AI, to accurately measure the distance between the sensor and the object. This technology allows for highly precise measurements, ensuring up to 99% accuracy for foot traffic counts.

The sensors also provide advantage features, including counts for adults/children (based on height), staff detection, U-turn filtering and GDPR compliant with anonymous detection.

General Features

  • ToF (Time of Flight) sensor
  • Up to 99% accuracy
  • Operates in low-light environments
  • Adult/Child counting using height range
  • Staff counting (using lanyard detection)
  • Data & power using Power over Ethernet (PoE+ 802.3at)
  • Mounting height range 2.5m to 3.5m (with mounting adapter for high ceilings)
  • GDPR compliant with anonymous detection
  • Embedded Al algorithm
  • Cloud-delivered dashboard and reports

Package Features

Overhead ToF People Counter Sensors

Overhead ToF People Counter Sensors

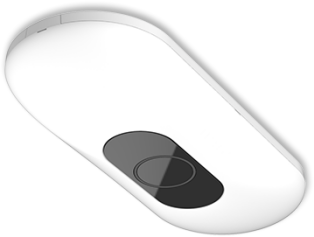

Overhead ToF People Counter Sensor

The Overhead ToF People Counter sensor features a compact design to seamlessly integrate into any environment, and leverage ToF (time of flight) technology for superior accuracy.

The sensor can be installed in ceiling heights between 2.5m and 3.5m (with an optional mounting arm for higher ceilings) and incorporates Power over Ethernet (PoE+), which combines data connectivity and power supply in one cable. Optional WiFi adapters and 4G PoE+modems are also available.


Make Inquiry

People Counting Analytics

People Counting Analytics

The Overhead ToF People Counter sensor provides the following analytics:

  • In/Out counting across multiple count lines
  • Occupancy Inside
  • Adult/children counting based on height range (separate counts based on min/max heights)
  • Staff counting (using lanyard detection)


Make Inquiry

Cloud Delivered EvolvePlus Dashboard

Cloud Delivered EvolvePlus Dashboard

EvolvePlus Reporting Dashboard

The cloud delivered EvolvePlus Dashboard allows users to analyse data in both Chart and Report formats by hour, day, week, month.

This valuable information reveals peak traffic periods to determine optimal operating hours and staffing requirements, as well as assisting with calculating peak visitor times and sales conversion ratios. It is optimised to handle multiple locations and scalable so that additional sensors can be added at any time.

Also available is the Occupancy / People Inside web app which calculates the current occupancy and displays the total number of people in the venue at any one time. The live count total (with a prominent large occupancy number) is displayed on a range of output displays including large monitors and tablets.

Make Inquiry
